| Quantity: | |
|---|---|

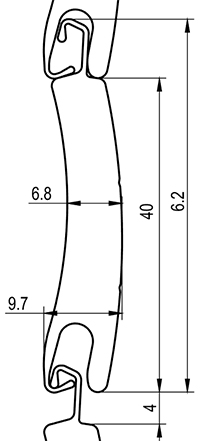

Size | 40mm |
Norminal thickness | 9.7mm |
Plate thickness | 0.3mm |
Weight | 120g/m, 3kg/m2 |
Lighting hole size | 1×12mm |
PU density | 60-65kg/m3 |
Maximum shutter width | ≤3.0m |
Maximum shutter height | ≤3.0m |
Slats per meter | 25 |
Length | 5.8m-6.5m |
Slats per package | 50 pcs |

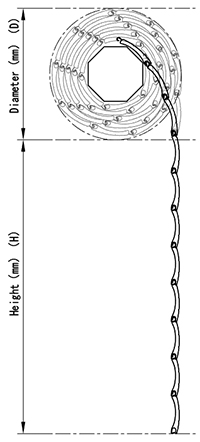

Height | Diameter | ||
φ40 | φ50 | φ60 | |
600 | 105 | 120 | 125 |
800 | 125 | 140 | 135 |
1000 | 140 | 140 | 140 |
1200 | 145 | 160 | 155 |
1400 | 160 | 160 | 160 |
1600 | 165 | 170 | 165 |
1800 | 170 | 180 | 175 |
2000 | 180 | 185 | 180 |
2200 | 180 | 195 | 190 |
2400 | 195 | 195 | 195 |
2600 | 200 | 200 | 195 |
2800 | 200 | 215 | 210 |
3000 | 215 | 215 | 210 |
3200 | 215 | 220 | 215 |
3400 | 215 | 230 | 225 |
3600 | 230 | 230 | 230 |
3800 | 235 | 235 | 230 |
4000 | 235 | 250 | 240 |
